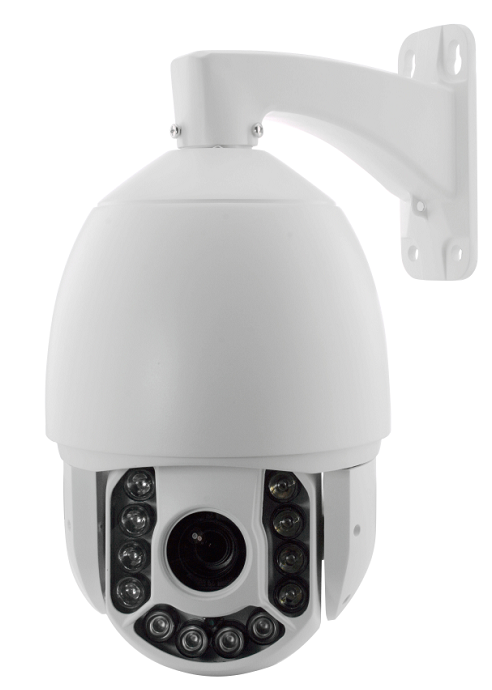

Name: 7"IR SPEED DOME            Item No.: 70

Main Features：

With a 1/1.9-inch and 2.3 Megapixels CMOS sensor, H89H30XS outputs the un-compressed, . It is capable of 30X zooming while remaining Full HD level. Together with its 3A controls (AWB/AGC/AEC), H89H30XS can catch detailed image like car license, clothing and facial features from a long distance, and clearly display the accident happening on highway.2.3 Megapixels &30x optical zoom lens
7

 Feature

* Adopts Array IR Lamps with IR distance of more than 150 meters.
* Built-in heat cycle system, light board adopts aluminum substrate
* IR lamps brightness changed according to the lens zoom value.
* Adopts standard H.265/H.264 compressing algorithm
* Support HDTV 1080P / 720P、D1 dual code stream simultaneous output.
* IE browser and client software to realize image viewing and controlling.
* Support SD/SDHC card recording
* Support multiple network protocols of TCP/IP, UDP, IP, HTTP, RTSP, FTP, DHCP, SMTP, SNMP and NTP;
* Support outage memory function, the dome will back to previous PTZ status after powered on.
* Built-in 3000V Lightning-proof data and power
* Water-proof with all-weather housing.
* Support Power-over-Ethernet(POE) power supply abide by IEEE802.3at(customized)

Technical Date

Model

SGE-H89H30X2-IR

Optical Zoom

30X

Image Sensor

1/1.9” CMOS,2.3 Megapixels

Horizontal Resolution

1920*1080P

Min. Illumination

Color(1/30s) : 0.15 lux , BW(1/30s) : 0.03lux

Color DSS(1/7.5s) : 0.0375 lux , BW DSS(1/7.5s) : 0.0075 lux

Focal Length

f = 6.0 mm ~ 180.0 mm

Visual Angle

69.0°- 2.6°

IR－CUT

Auto/ON/OFF

Focal Mode

Auto/Manual

BLC

ON/OFF

WDR

ON/OFF

Frame Rate

25P/30P

WB

Auto/Manual

AGC

Auto

S/N Ratio

≧50dB

Motion Detection

ON/OFF

Privacy Mask

Support

Other Parameter

IR Distance

More than 150 meters

Max. Pan Speed

220°/s

Max. Tilt Speed

180°/s

Preset Number

256

Pattern Scan

4each can record more than 180s））

Auto Scan

4

Tour Group

4（16 preset positions can be added in each group）

Speed Changes Proportionally

Support

3D Position Function

Support

Outage Memory

Support

Alarm

1 inputs/1 output(customized)

Schedule Task

Support

Network Function

Video Compressing Algorithm

H.265/H.264/MPEG4/MJPEG

Video Compressing Code Rate

64Kpbs～16Mpbs

FPS

7.5fps-30fps

Audio Compressing Algorithm

G．711

Code Stream

Support Simultaneous Dual Code Stream（720P/D1）

Network Protocols

TCP、UDP、IP、HTTP、RTSP、FTP、DHCP、NTP

Motion Detection

Support

Network Interface

1个RJ45 10M/100M Self-adaptive Network Interface.

Other Parameter

Operating Temperature

0℃～50℃（Indoor）;-30℃～+65℃（Outdoor）

Operating Humidity

0～90% RH（non-densing）

Protection Grade

IP66 all-weather housing，3000V lighting and surge proof

Power Supply

AC24V/3A

Power Consumption

45W

Weight

5.5KG

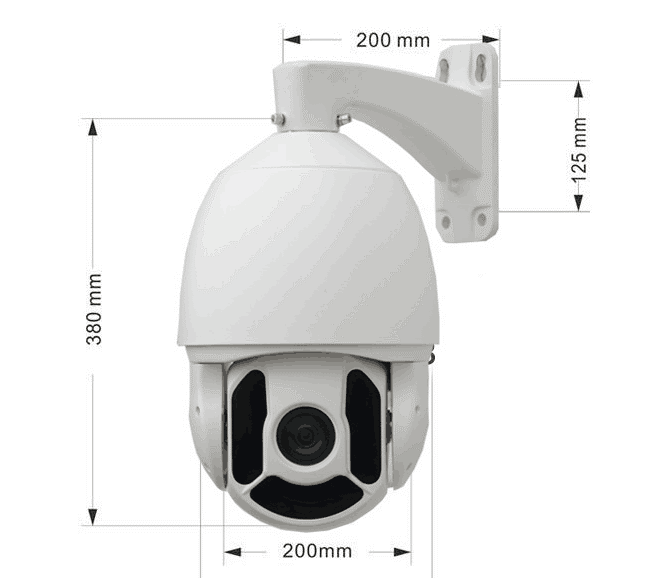

Dimension Drawing
