内容编辑Main Features：

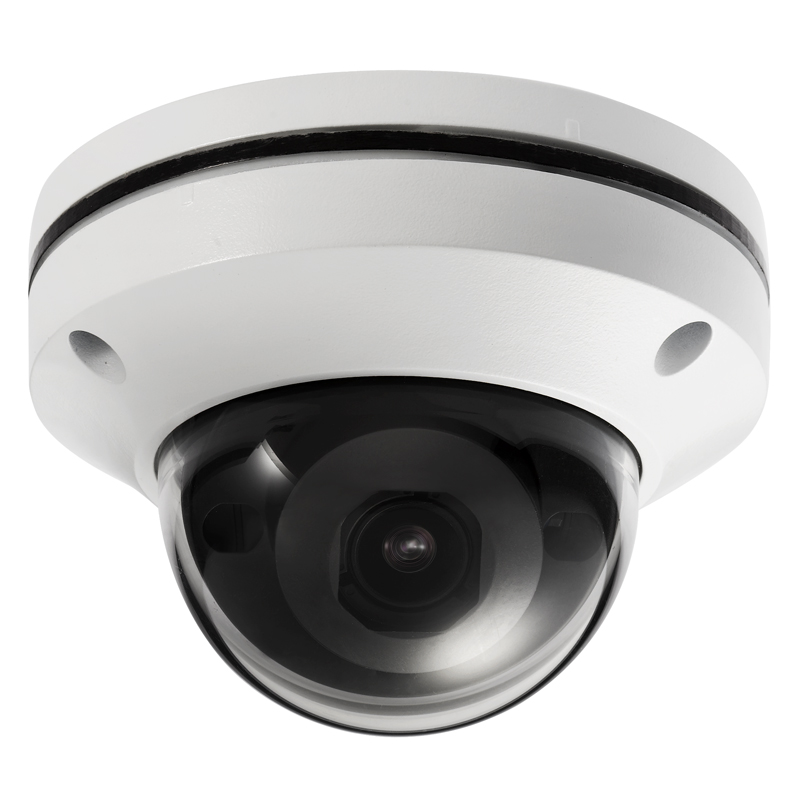

>1/2.8" CMOS 2.0MP ,Sony 323 >1080P@25/30 fps >2.8~8mm 3X Optical Zoom >2 pcs IR LEDs, 20 meters IR Distance OSD Menu, English Output：HD-AHD/ CVBS Communication：RS-485,Coaxial transmission and control Intermittent scan,Auto scan, Auto Parking, Power Up Actioin 255 presets , Horizontal speed: 0.5~180°/sec 350°Horizontal rotation, Vertical range:0~90° (mechanical Flip) Ceiling Mount/Wall Mount/Lifting Mount 2inch,Aluminum Die-casting，IP66(1).jpg)
Technical Data
|
Model |
SGE-H203-AHD |
|
Camera |
|
|
Image Sensor |
1/2.8" CMOS 2.0MP, Sony 323 |
|
Effective Pixels |
1985(H)×1105(V) |
|
Video Format |
1080P/25fps; 1080P/30fps |
|
Zoom |
3X Optical Zoom |
|
Lens |
2.8~8mm |
|
IR LED Illumination Distance |
2 pcs IR LEDs, 20M IR Distance |
|
Day&Night |
Auto/Day/Night（ICR） |
|
Focus |
Auto/Manual/SemiAuto |
|
AGC |
0~32 |
|
DNR |
Low/Middle/Hight/Off |
|
HLC |
On/Off |
|
Video Output |
HD-AHD/TVI/CVI/ CVBS |
|
PTZ |
|
|
Horizontal Range |
350° Horizontal rotation |
|
Horizontal Speed |
0.5~180°/sec |
|
Vertical Range |
0-90 ° mechanical flip |
|
Preset |
255 Preset |
|
Preset Scan |
supports 30 presets, preset dwell time can be set |
|
Other Scan |
Intermittent scan,auto scan |
|
Other Functions |
Auto Flip, Auto Parking, Power Up Action etc. |
|
General |
|
|
Communication |
RS-485（Pelco-p-d）,COAXIAL(UTC) |
|
Operating Temperature |
Indoor/Outdoor:-10℃~+50℃ |
|
Rated Power |
DC12V/ Current: 0.8A max |
|
Protection grade |
IP66 |
|
Appearance /material |
White (black decoration) / aluminum alloy (ADC) |
|
Size |
Ø 105X 75 mm |
|
Weight |
350g |
