内容编辑Main Features：

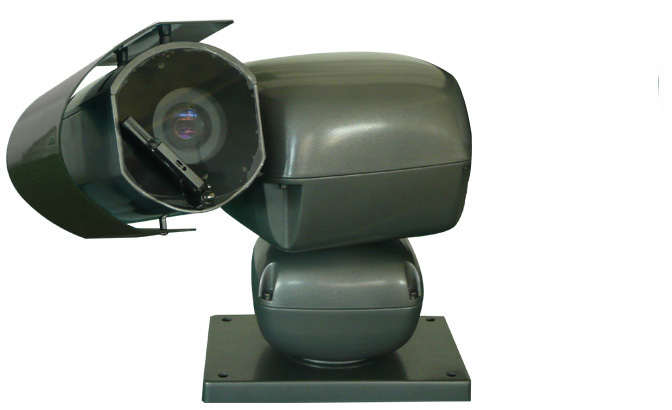

HD-SDI video output 1/2.8” 2 megapixel CMOS, outputs 1080p/720p video of excellent color performance, captures frame with the littlest chromatic aberration. It’s capable of 10X zooming that still remains high definition standard, and with 3A control (AWB, AGC, AEC) system, the dome can adroitly catch and track target in a complicated and changing environment. For instance, can catch detailed image like car license, clothing, and facial features from a long distance, and display the accident happening on highway clearly..jpg)
Main Feature:
* Plane optical glass to ensure no image loss.
* Pan: 360° continuous rotation; Tilt: -90°-+90°.
* HD-SDI digital output, 1080P resolution, real-time transmission without time delay.
* 128 preset positions, 4 patterns,4 tours, 4 auto scan;
* Accurate location with precision of no more than 0.1°.
* Support idle activation function to call preset position, tour group and other function.
* Support outage memory function;
* Built-in heater, heater and fan to adapt to various environments.
* Built-in decoder to compatible with the following protocols as, PELCO D/P, KALATEL and so on.
* IP66 outdoor protection grade,4000V lighting and surge proof.
Technical Data：
Model SGE-H55120S2 SGE-H55130S2 Optical Zoom 20X 30X Scanning Mode Progressive Progressive Horizontal Resolution 1920*1080 1920*1080 Min. Illumination 0.3LUX 0.01LUX Focal Length 4.7-94mm 4.3-129mm Digital Zoom 12X 12X IR-CUT Auto/ON/OFF Focal Mode Auto/ Manual BLC ON/OFF WDR ON/OFF WB Auto/Manual AGC Auto Video Format NTSC/PAL S/N Ratio ≥50dB Privacy Mask 8 PTZ Function Pan 360° Continuously Max. Pan Speed 120°/s Tilt 90° to -90° Max. Tilt Speed 80°/s Preset Number 128 Pattern Scan 4 Auto Scan 4 Tour Group 4 OSD menu Support Speed Changes Proportionally Support Outage Memory Support Schedule Task Support IR/White Light LED Wavelenth 850nm effective casting distance 80-100 meters Other Parameters Operating Temperature -40℃~65℃（Outdoor）/-10℃~50℃（Indoor） Operating Humidity 0~95% Protection Grade IP66 all-weather housing,4000V lighting and surge proof Power Supply AC24V±20% Power Consumption 45W

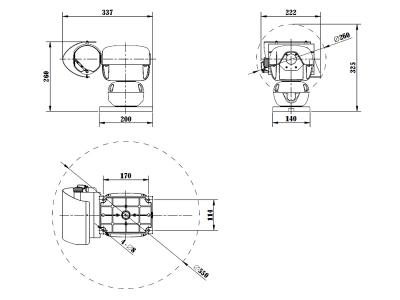

Dimension Drawing:
