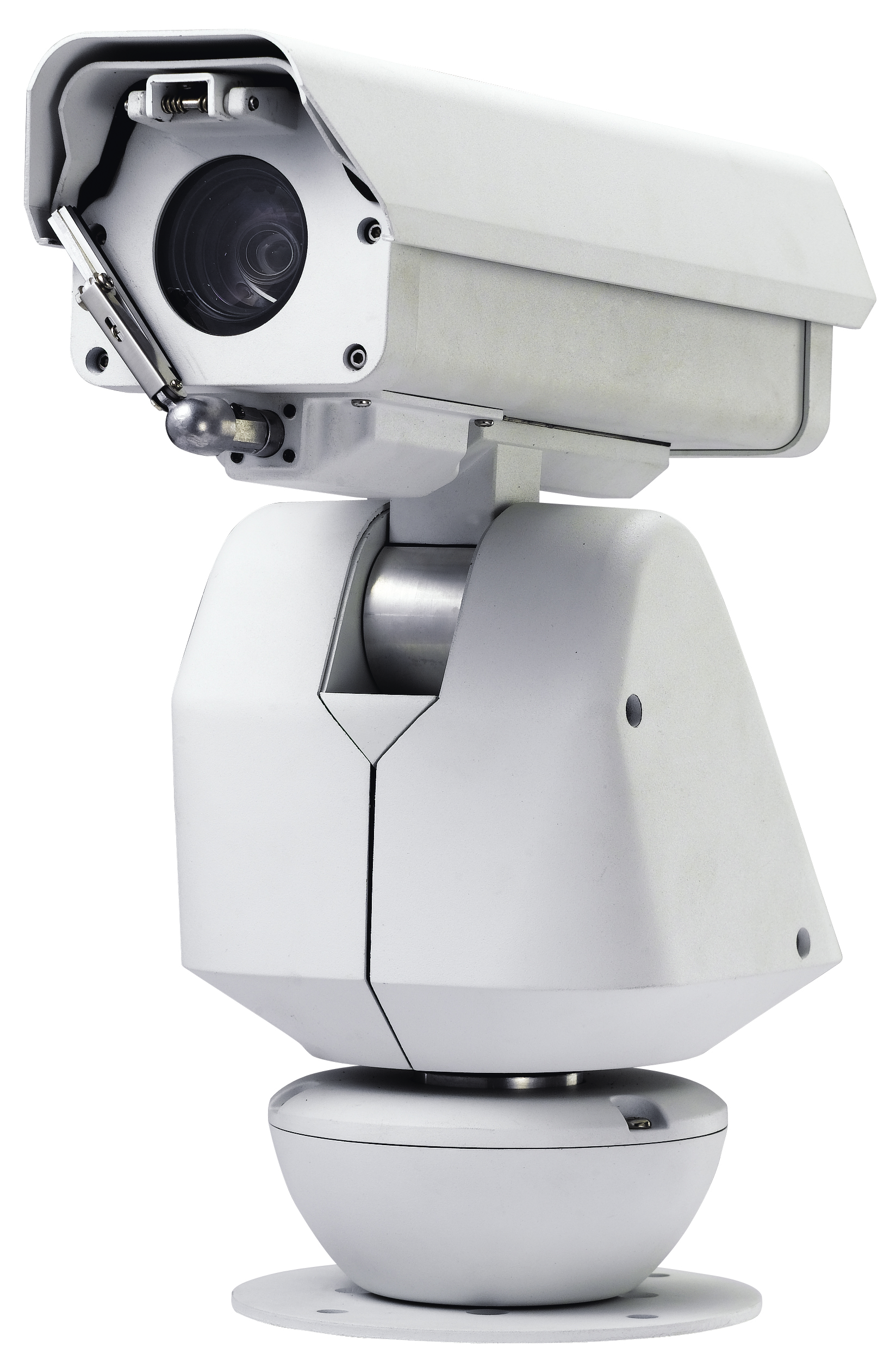

Name: HD-SDI Mini High Speed Pan/Tilt Camera Unit Item No.: SGE-H66

Main Features：

Main Feature:

* Adopts high strength aluminum alloy structure to support waterproof, acid rain-proof, aging proof and corrosion proof;

* HD-SDI digital output, 1080P resolution, real-time transmission without time delay;

* Support 3D intelligent positioning function, with the DVR and client software to enable click tracking and zooming；

* 360°continuous pan rotation, -35°-75°tilt rotation, no blind area;

* Manually pan speed of 0.1-120°/s, tilt speed of 0.1-125°/s;

* Support 256 preset positions with image freezing function;

* Support 8 tours, 8 patterns and 8 auto scan;

* Support idle time activation function, the dome will auto call preset position when the dome is idle for a period of time;

* Support outage memory function;

* Support lighting and surge proof function;

* IP66 outdoor protection grade；4000V lighting and surge proof.

* Operating Temperature：-30°C～+65°C.

* Withstanding wind speed of 130km/h, 90km/h in working status.

Product Model	SGE-H66118H1	SGE-H66120B1	SGE-H66120B2	SGE-H66120S2	SGE-H66120A2
Camera Model	Hitachi SC110	BDM-S532.	BDM-S642	SONY FCB-EH6300	AGX ML-220
Image Sensor	1/3 inch CCD	1/3 inch CCD	1/2.8 inch CMOS	1/2.8 inch CMOS	1/3 Progressive CMOS
Pixels	1.3 M	1.3 M	2.0 M	2.1 M	2.0 M
Optical Zoom	18×	18×	20×	20×	20×
Min. illumination	0.02LUX	0.02LUX	0.02LUX	0.02LUX	0.005Lux
Focal Length	4.7-84.6mm	4.7-84.6mm	4.7-94mm	4.7-94mm	4.7-94mm
Horizontal Angle	55.2°-3.2°	55.2°-3.2°	55.2°-2.9°	55.2°-2.9°	55.2°-2.9°
IR-CUT	Auto/ON/OFF
Focus Mode	Auto/Manual
BLC	ON/OFF
WDR	ON/OFF
White Balance	Auto/Manual
AGC	Auto
Standard Format	PAL/NTSC
S/N Ratio	≥50dB
PTZ Function
Max. Pan Speed	320°/s
Max. Tilt Speed	280°/s
Preset Number	256
Pattern Scan	8(each can record 180s)
Auto Scan	8
Tour Group	8(32 preset positions can be added)
Speed Changed Proportionally	Support
Other Parameters
Outage Memory	Support
Alarm	4in/1out
Video Output	HD-SDI
Operating Temperature	0℃~+50℃(indoor),-30℃~+65℃(outdoor)
Operating Humidity	0~90％RH(non-densing)
Protection Grade	IP66
Power Supply	AC24V±10％
Net Weight	6.8kg
Dimension	39cm32cm32cm
