内容编辑Main Features：

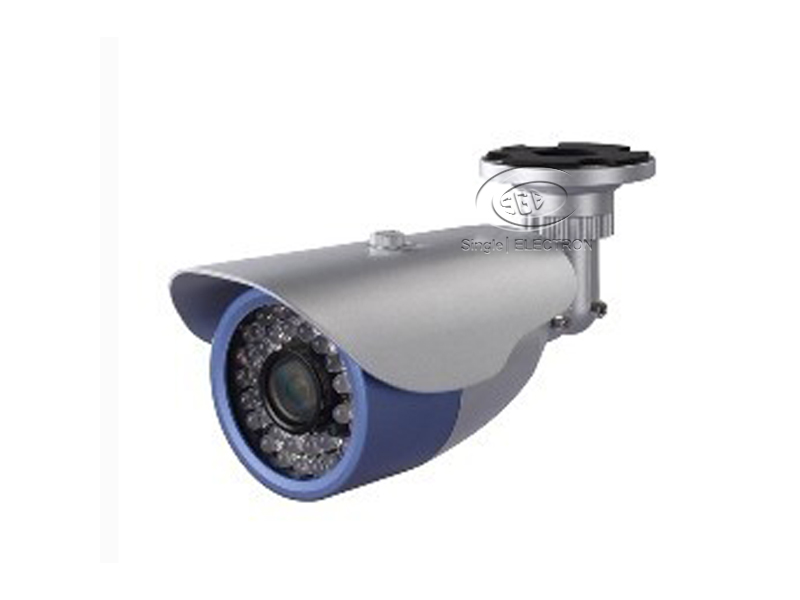

* 1/3″SONY EXVIEW HAD CCD, 540TVL, f=3-10mm; * Support WDR, DNR and DSS; * CDS auto IR lamps control; * 36 IR Lamps, IR distance of 30 meters; * Support privacy mask and motion detection; * OSD menu display; * Protection Degree Grade of IP66.
Specification
|
Model |
SGE-6202 |
|
|
Camera |
Image sensor |
1/3" SONY EXVIEW HAD CCD II |
|
Video Standard |
PAL/NTSC |
|
|
Effective Pixels |
PAL:976(H)×582(V) |
|
|
NTSC:976(H)×494(V) |
||
|
Min. illumination |
Color:0.001Lux @ (F1.2,AGC ON),0.0001Lux @ (F1.2,AGC ON),B/W:0.0001Lux @ (F1.2,AGC ON),0.00001Lux @ (F1.2,AGC ON,) |
|
|
Shutter Speed |
1/50(1/60)s-1/100,000s |
|
|
IR Distance |
30 meters |
|
|
Lens Interface Type |
C/CS Interface |
|
|
Aperture Drive |
|
|
|
Color reversion device |
ICR filter |
|
|
Horizontal Resolution |
700TVL |
|
|
Synchronization Mode |
Internal/Power Supply synchronization |
|
|
Video Output |
1Vp-p Composite Output（75Ω/BNC） |
|
|
S/N ratio |
More than 62dB |
|
|
Menu |
Title Display |
OFF/ON(16 characters, the tiltle position can be set) |
|
AGC |
Low/Medium/High/OFF |
|
|
Color Reversion |
Auto1/Auto2/Color/Black and White |
|
|
White Balance |
Auto Track1/Auto Track2/Manual/Auto |
|
|
Privacy Mask |
ON/OFF, max. 12 areas |
|
|
Motion Detection |
Mode1/mode2/OFF |
|
|
BLC |
BLC/HBLC/OFF |
|
|
Anti-blooming |
Support |
|
|
RS-485 Control |
Address/Control/Baud Rate |
|
|
Anti-fliker |
ON/OFF |
|
|
Languages |
Chinese/English |
|
|
Function Setting |
Support digital WDR, DNR, Digital Zoom, Mirror, Defective pixel compensation functions and color parameter setting. |
|
|
General Data |
Operating Temperature and Humidity |
— |
|
Power Supply |
AC24V±10% / DC12V±10% |
|
|
Power Consumption |
5W |
|
|
Dimension(mm) |
69×56×113.3 |
|
|
Net Weight |
|
|
