内容编辑Main Features：

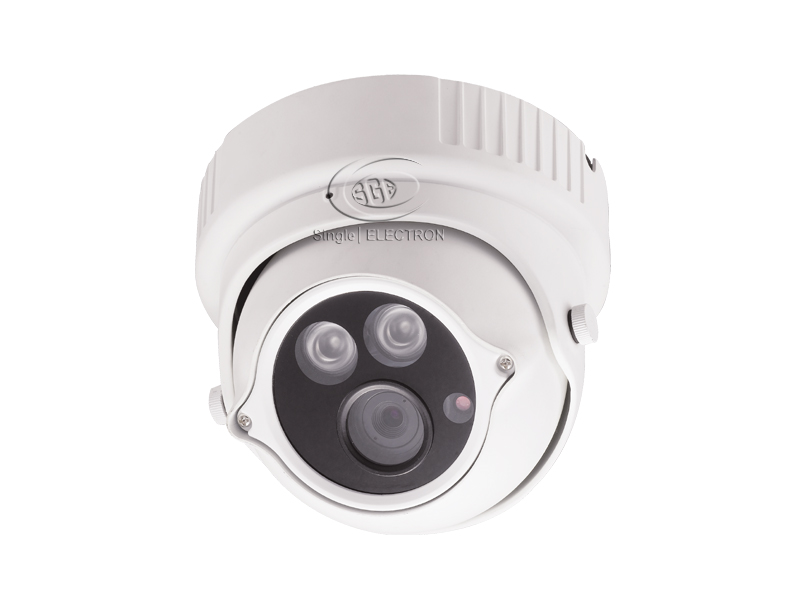

* 1/3” SONY CCD, 650TVL; * Supports B/W reversion function; * Built-in wide angle IR lens, 23 high brightness IR lamps; * Support auto WB and BLC; * Double glass structure; * IR distance of 30 meters..jpg)
Specification：
|
Camera |
Image sensor |
1/ |
|
Video Standard |
PAL |
|
|
Effective Pixels |
PAL:500(H)x582(V) |
|
|
Scanning System |
2:1 Interlace |
|
|
PAL:H:15625Hz V:50.0Hz |
||
|
Horizontal Resolution |
Color:650TVL |
|
|
Min. illumination |
0 Lux（LED ON） |
|
|
Color reversion mode |
Controlled by photoresistor |
|
|
Color reversion value |
1LUX |
|
|
BLC |
Auto |
|
|
AGC |
Auto |
|
|
White Balance |
2500K-10000K |
|
|
Focal Length |
3. |
|
|
Aperture Type |
Fixed Type |
|
|
Shutter Speed |
1/50(1/60)—1/100,000(Sec.) |
|
|
Video Output |
1Vp-p Composite Output（75Ω/BNC） |
|
|
S/N ratio |
More than 48dB |
|
|
Synchronization Mode |
Internal |
|
|
IR Lamps |
IR LEDs |
Two 1W array IR LEDs |
|
IR wavelength |
850nm |
|
|
IR effective distance |
30 meters |
|
|
General Data |
Operating Temperature |
|
|
Operating Humidity |
0% ～ 80% RH |
|
|
Protection Grade |
IP 66 |
|
|
Power Supply |
DC 12V |
|
|
Power Consumption |
3W（IR lamps on） |
|
|
Dimension |
69(H) * 94(D) |
|
|
Net Weight |
|
