内容编辑Main Features：
* OSD menu in English and Chinese; * Pan Continuous run 360°, tilt -5°-185°, no blind area;.jpg)
Introduction:
* HD-SDI digital port output, 1080P HD images no losses, real-time transfer, no delay.
* WDR and voice reduction, adapt all kind of environment.
* OSD menu in English and Chinese, friendly user interface, function is more powerful.
* Pan Continuous run 360°, tilt -5°-185°, no blind area,
* Preset point 256 and have preset freezing function.
* 8 tour, 32 preset point/ling;
*Precision step motor, responsive, smooth operation, precision deviation less than 0.1 degrees, jitter-free image at any speed.
* Running speed can automatically adjust with lens zoom multiples.
* Memory storage after power outage, pan/tilt PTZ and lens
* Support for 3D intelligent positioning function, with the DVR and client software to enable click tracking and zoom.
*Support privacy mask.
*Working temperature:
Parameter:
|
Item Number |
H56P18H-SDI |
H56P20H-SDI |
H56P18B-SDI |
H56P20B-SDI |
H56P20S-SDI |
|
Optical Zoom |
18X( |
20X( |
18X(Koeisha) |
20X(Koeisha) |
20X(Koeisha) |
|
Image sensor |
1/3 CCD 1.3Megapixel |
1/2.8 CMOS 2.1Megapixel |
1/3 CCD 1.3Megapixel |
1/2.8 CMOS 2.1Megapixel |
1/2.8 CMOS 2.0Megapixel |
|
Scan Method |
Progressive |
Progressive |
Progressive |
Progressive |
Progressive |
|
Horizontal Resolution |
1280*720 |
1920*1080 |
1280*720 |
1920*1080 |
1920*1080 |
|
Min. Illumination |
0.02LUX |
0.04LUX |
0.08LUX |
0.1LUX |
0.1LUX |
|
Focus |
4.7 |
4.7 |
4.7 |
4.7 |
4.7 |
|
Digital Zoom |
12X |
12X |
12X |
12X |
12X |
|
Pan Angle |
55.2°-3.2° |
55.2°-2.9° |
55.2°-3.2° |
55.2°-2.9° |
55.2°-3.2° |
|
IR－CUT |
Auto/ON/OFF |
||||
|
Focus |
Manual/Auto |
||||
|
BLC |
ON/OFF |
||||
|
WDR |
ON/OFF |
||||
|
White Balance |
Auto/ Manual |
||||
|
AGC |
Autos |
||||
|
Signal Format |
NTSC/PAL |
||||
|
SNR |
≧50dB |
||||
|
Motion Detect |
OFF/ON |
||||
|
Privacy Mask |
Support |
||||
|
PTZ Function |
|||||
|
Max. Horizontal Speed |
320°/S |
||||
|
Max. Verticality |
280°/S |
||||
|
Speed |
|||||
|
Preset |
256 |
||||
|
Pattern |
8(each line recording more than 180s) |
||||
|
Auto Scan |
8 |
||||
|
Tour |
8(32 presets/tour) |
||||
|
Match Scale |
Support |
||||
|
Outrage Memory |
Support |
||||
|
Alarm |
|
||||
|
Fix Time |
Support |
||||
|
Communication |
RS485/RS422 |
||||
|
Video Output Bandwidth |
The highest of transmission bandwidth 1.5Gbps |
||||
|
Video Frequency Frame rate |
25,30,50,60 |
||||
|
Other specification |
|||||
|
Operation temperature |
0℃~50℃( Indoor), -30℃～+65℃(Outdoor) |
||||
|
Environment Temperature |
0~95%RH(no condensation) |
||||
|
Protection |
IP66protection, Built-in 3000V lighting-proof, vandal-proof, all day cover protection. |
||||
|
Power |
DC24V/ |
||||
|
Power |
15W(Indoor), 50W(Outdoor) |
||||
|
Weight |
|
||||
|
Package Dimension |
|
||||

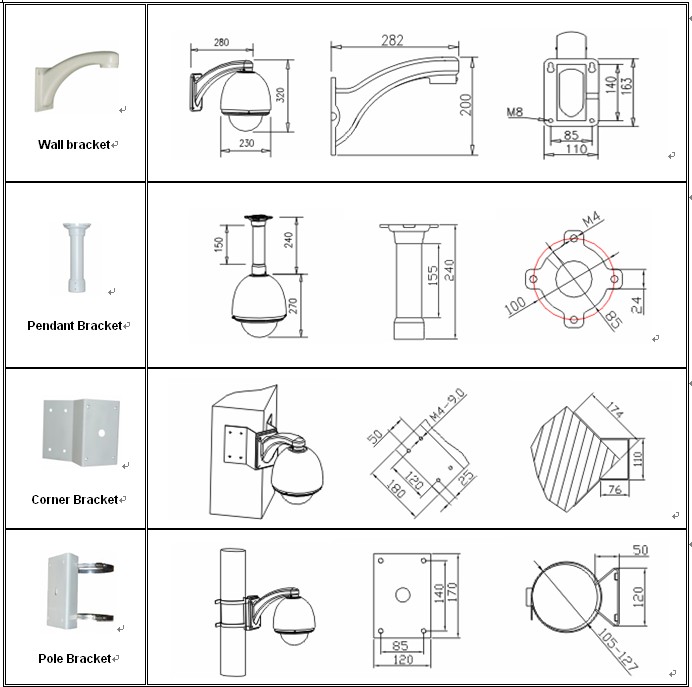

Installation Dimensional: (mm)

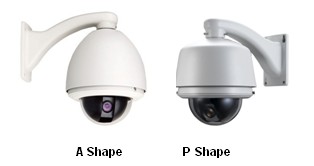

Optional Shape:
