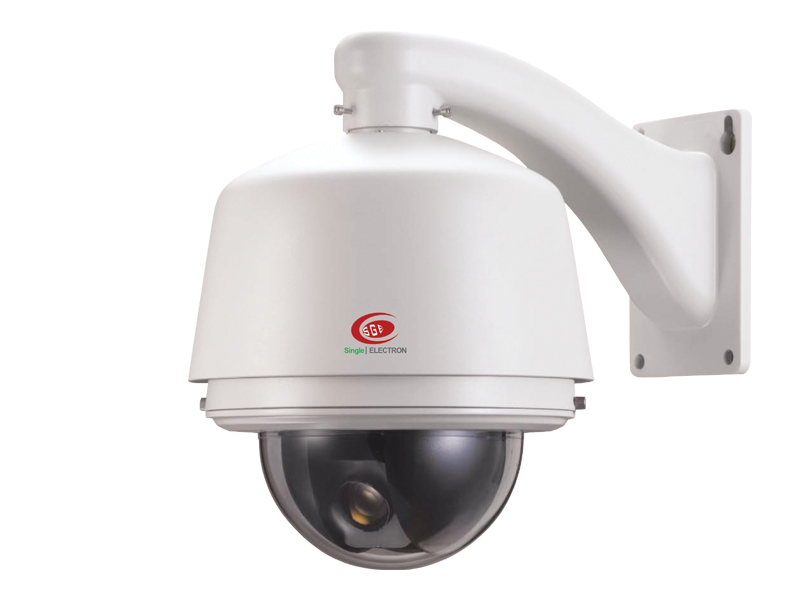

内容编辑Main Features：
* Metal structure in fast installation; AMP plug installation easily;* Motion detection;Face Recognition(Optional function);
* Max. Preset speed Pan: 360°/S, tilt: 320°/S; Manual Pan: 320°/S, Tilt: 280°/S;
* Built-in 8 multi languages OSD menu;
* Baud Rate (RS485):2400/4800/9600/19200bps.
.jpg)
* In embedded operation system, support online editing relative titles via PC or other terminal;
* Memory storage after outage, the dome can resume the detection or state after turn on the power;
* Time task: can start different function according time schedule preset, which help operators saving time;
* Broadcast address, can set any address as broadcast address. It can control the all dome in the same time or by grouping;
* Title can be displayed in 40 English alphabets each line;
* Support DC12V/AC24V dual power supply;
* Compass function, one direction can be set as reference direction like north, then each direction will show on screen when running;
* 256 presets (accuracy0.1degree), 8 patterns, 8 tours, 8 auto scan;
* Built-in alarm: 4 inputs / 2outputs;
* Outdoor protection ratio IP66, Built-in 3000V lighting-proof, with all- weather protective cover;
* Support general protocols such as: Pelco-C, PELCO-D PELCO-P, SAE, AD, Vicon, VCL, Molynx, Diamond, Kalatel, Philips, Bi-phase and EAE etc.);
* Support RS485/422,
* Optional zooms: SONY,
|
18X |
18X |
22X |
23X |
26X |
30X |
35X |
36X |
|||
|
CCD |
1/3"CCD |
1/ |
||||||||
|
CCD scan |
interlace |
interlace |
interlace |
interlace |
interlace |
interlace |
interlace |
interlace |
interlace |
|
|
Resolution |
540TVL |
480TVL |
480TVL |
540TVL |
540TVL |
540TVL |
540TVL |
650TVL |
540TVL |
|
|
Min .Illumination |
0.7LUX |
0.7LUX |
0.7LUX |
0.01LUX |
0.7LUX |
0.01Lux |
0.01LUX |
0.27Lux |
0.1Lux |
|
|
Focal length (MM) |
4.7-84.6 |
4.1-73.8 |
4.-88 |
3.6-82.8 |
3.6-100.8 |
3.6-126 |
3.5-91 |
3.6-126 |
3.4-122.4 |
|
|
Optical zoom |
12X |
16X |
12X |
12X |
16X |
12X |
12X |
16X |
16X |
|
|
IR-CUT |
Auto/ON/OFF |
|||||||||
|
Focus |
Auto/Manual |
|||||||||
|
BLC |
ON/OFF |
|||||||||
|
WDR |
ON/OFF |
|||||||||
|
White balance |
Auto/Manual |
|||||||||
|
AGC |
Auto |
|||||||||
|
Signal system |
NTSC/PAL |
|||||||||
|
S/N Ratio |
≥50dB |
≥52dB |
||||||||
|
Face recognition |
— |
— |
— |
— |
— |
— |
— |
Support |
— |
|
|
Motion Detection |
— |
— |
— |
— |
— |
Support |
Support |
Support |
Support |
|
|
Privacy Mask |
8 |
24 |
— |
8 |
24 |
8 |
8 |
8 |
24 |
|
|
Language |
Chinese, English, French, German, Italian, Russian, Spanish, Portuguese |
|||||||||
|
Character |
40 English alphabets each line |
|||||||||
|
Max. Horizontal Speed |
320°/s |
|||||||||
|
Max. Verticality |
280°/s |
|||||||||
|
Preset |
256 |
|||||||||
|
Pattern |
8(each line recording more than 180s) |
|||||||||
|
Auto Scan |
8 |
|||||||||
|
Tour |
8(32 presets/tour) |
|||||||||
|
Compass Function |
Support |
|||||||||
|
Zone |
8,with the title |
|||||||||
|
Match Scale |
Support |
|||||||||
|
Communication |
RS485/RS422/Manchester/Biphase/Coaxiel |
|||||||||
|
Bond Rate(RS485) |
||||||||||
|
|
0~255 |
|||||||||
|
Outrage Memory |
Support |
|||||||||
|
Alarm |
4Input /2Output |
|||||||||
|
Timing |
Support |
|||||||||
|
Video output |
1.0±0.2Vp-p |
|||||||||
|
Video input interface |
Female BNC |
|||||||||
|
Operate Temperature |
0℃~+50℃(indoor) -30℃~+60℃(outdoor) |
|||||||||
|
Operating Humidity |
0~95%RH(no condensation) |
|||||||||
|
Protection |
Outdoor protection IP66, Built-in 3000V lighting-proof, |
|||||||||
|
Output Video |
Female BNC |
|||||||||
|
Power Supply |
AC 24V±20% |
|||||||||
|
Power Consumption |
10W(indoor), 50W(outdoor) |
|||||||||
|
G.W. |
|
|||||||||
|
Package Size |
45*28*33mm |
|||||||||

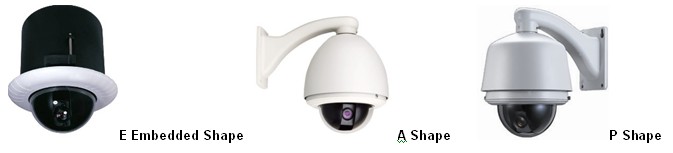

Optional Shape:
