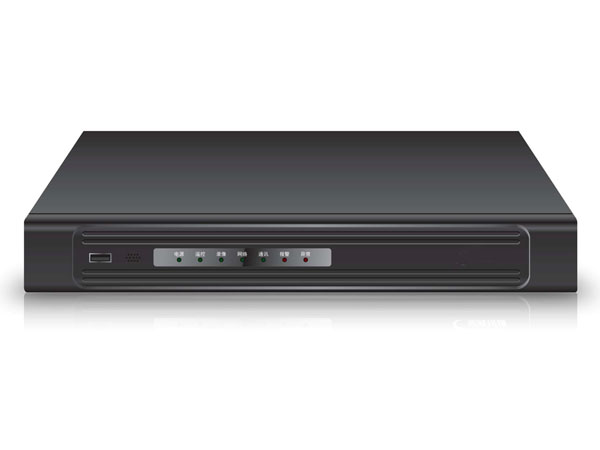

Name: SDVR 4CH, 8CH, 16CH            Item No.: SDVR

Main Features：

* PAL/NTSC video input, encoding under D1 resolution
* Support RS485 communication interface
SDVR 4CH, 8CH, 16CH

 Introduction:

*Supports covering the view area, the size and position of the covering area can be adjusted.

*Support Windows CE, Symbian, Iphone & Android Phone system, realize real-time preview.

*Support electronic amplification preview.

*Support video motion detection, video loss detection.

*Support clip backup during the playback.

*Supports 1/4/6/8/9 screen live view, channel sequence is adjustable.

 *Support six recording types: manual, timing, motion, alarm, motion or alarm, motion and alarm.

 *Support TCP/IP protocol, Support DDNS,NTP,PPPOE and SMTP, etc.

 *Support WIFI,3G/2G functionality module.

*Support remote file retrieval, playback, editing, downloading.

*Support remote reboot, upgrade, format of hard disk, import and export configuration files and other system *maintenance operations.

*Support slice engine, you can set the slice retrieval channel, screen mode and start-stop time of the retrieval, and fast locating to view the events on playback.

*Support UPNP realizes port mapping automatism.



Parameter:

Model No.

Video Input

Resolution

SATA Interface

Audio input

Alarm Input

Alarm Output

SDVR6104

4

D1

1

0

0

0

SDVR6108

8

D1

1

4

8

1

SDVR6108-LE

8

D1

2

8

8

1

SDVR6108-HE

8

D1

8

8

8

1

SDVR6116-LE

16

D1

4

16

16

4

SDVR6116-HE

16

D1

8

16

16

4

Model Number

DVR6104

DVR6108

DVR6108LE

DVR6108HE

DVR6116LE

DVR6116HE

System

Operation System

Embedded  Linux

System Resources

Function: live view, recording, playback, backup & remote access

System Status

HDD status, Device status, Recording status

Video

Video Input

4channel,

8channel,

8channel,

8channel,

16channel,

16channel,

VGA

1

1

1

1

1

1

CVBS

1

1

2

2

2

2

HDMI

0

0

1

1

1

1

Video Compression

H.264

Video Resolution

D1/2CIF/CIF/QCIF

Playback Resolution

704x576 (PAL), 640x480(NTSC)

Video Display Split

Full and multiple screen display, 1/4/9

Privacy Masking

Self-defined one zone for privacy masking for each camera

Video Information

Camera title, time, and type

Audio

Audio Input

0

4

8

8

16

16

Audio interphoe

1 channel

Audio Compression

G.711

Video Detection & Alarm

Motion Detection

Multi zone set and multilevel sensitive set

Video Loss

Trigger recording, PTZ movement, upload to center

Alarm Input

8 channel, constant open/closed supported

Trigger recording, PTZ movement, tour, alarm, upload to center

Alarm Output

4 channel,

Hard Disk

Hard Disk

SATAx1

SATAx1

SATAx2

SATAx8, eSATAx1

SATAx4

SATAx8, eSATAx1

Content  per port

2T

Record, Playback & Backup

Recording Mode

Manual, Timing, Motion detection, Alarm

Overwrite Mode

Support

Search Mode

Time/Date, mode

Playback

4ch

8ch

8ch

8ch

16ch

16ch

Backup Mode

Flash USB

Network

Interface

RJ-45 Port (10/100M)

Network Functions

TCP/IP, DHCP, NAT, PPPoE, HTTP

Remote Operation

Monitor, PTZ control, playback, system setting, file download, log information

Auxiliary Interface

USB Interface

2

2

2

3

2

3

RS 232

1 port

RS485

0

1

1

1

1

1

Environmental

Power Supply

DC12V;3.74A

Operating Temperature

0℃~50℃

Operating Humidity

10%～90%RH

Dimension

338x238x44

338x238x44

440x375x44

440x424x88

440x375x44

440x424x88
