Introduction:

Introduction:

*Complete intrusion detection embedded VTDTM Intelligent visual analysis technology, including through the detection of tripwires, fence intrusion, regional, derelict goods move detection, PTZ auto-tracking, illegal parking detection and wandering detection analysis module;

* Output resolution CIF, MPEG-4 streaming media audio and video, full real time frame rate (PAL25fps,NTSC 30fps);

* Supports two-way audio, can review and remote configuration via the Web;

* Based on the detection of three-dimensional field of view, which has excellent non-flat terrain on the target detection capability, can be detected long distance’s target;

* Video can be set up to 40 detection areas or virtual line; can be set to detect non-detection region;

* One way video can detect up to 100 moving or stationary targets;

* Video stabilization: to correct the output shaking camera video stream;

* Chip uses TI's DM6446, intelligent analysis system run-time only takes up less than 25% of the CPU and memory is less than 16Mbyte, video encoding and intelligent processing in DSP synchronous operation;

* Alarm system will immediately alarm when something trigging the fortification regional rules, output data formant (meta-data)in XML, the data contains three API: (A) alarm information, (B) Regional Statistics, (C) Event video;

* By the 3D camera calibration, can be shown of object class, height, speed and size. According to the type of object, to filter some unnecessary factors, improve the system detection accuracy;

* Intelligent analysis equipment with 2 seconds fast self-learning capability, and will not false positives even the PTZ camera rotation.

Diversification tracking mode:

1. Automatic tracking of moving targets within a scene, and can track objects of the scene that may lead to unnecessary filtering, such as small animals, shaking the leaves, other debris, such as greatly improve the tracking accuracy;

2. Can tracking a variety of object behavior triggered, tracking rules include: entering, leaving, appear, disappear, stop, hovering, trailing, support for color, direction, etc., completely support detection of stationary objects or abandoned objects be moved;

3. Manually specify the track on the target within the scene, just use the mouse to drag the specified target, dome will track on the specified target. Easily operate.

Parameter:

Instruction:

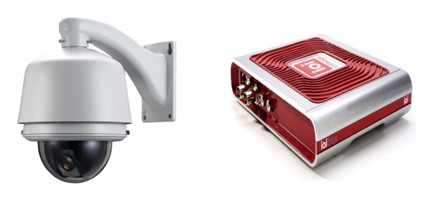

 Camera and Tracking Moudle:

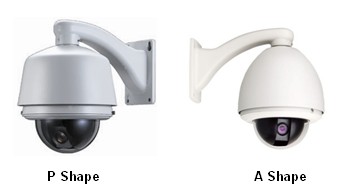

 Optional Shape:
