Name: M56 IP Intelligent High Speed Dome Camera Item No.: SGE-H56P

Main Features：

* Standard H.264 compress
* 1/4” Progressive Scan EX view HAD CCD
* Resolution: 704X576, 704X288, 352X288
* Support Dual D1 and CIF encoding streams

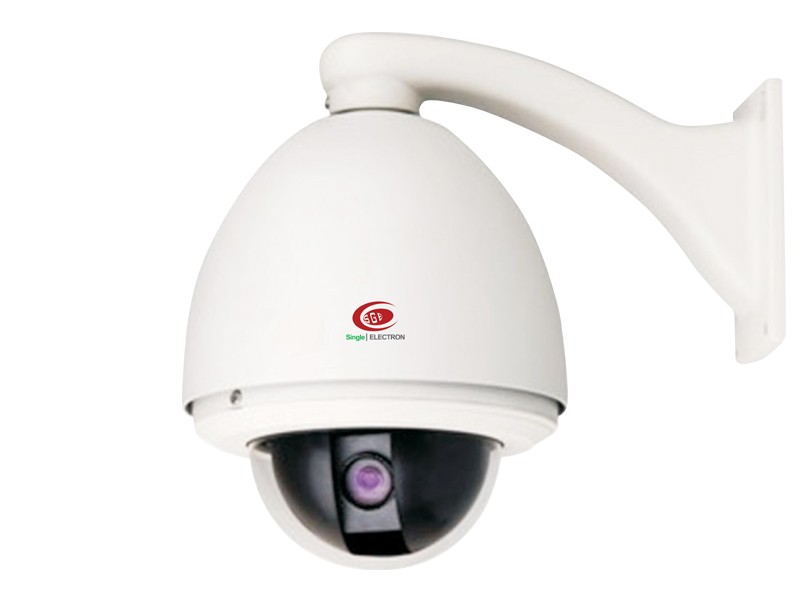

M56 IP Intelligent High Speed Dome Camera

Introduction:

* Built-in WEB Server, ANNA30M supports WEB browsing and User Authority Management, it’s easily to monitor and control video over IE and Client Software interface;

* Support standard MJPEG image compression format;

* Built-in 8 multi languages OSD menu;

* Support SDHC and SD card storage;

* Memory storage after outage, M56-IP can resume the detection or state after turn on the power;

* Support multi protocols, such as TCP/IP, HTTP, DHCP, DDNS, RTSP, RTP/RTCP, pppoe, FTP, SMTP, NTP, SNMP;

* 256 presets, 8 patterns, 8 tour, 8 auto scan;

* Idle task function supported: Call preset/tour and etc operations after idle for the specified time (including the idle status after the system boots up);

* Build-in video 1In/Out, Alarm: 4 Input/ 2 output, and alarm linkage recording and capture;

* Time task: can start different function according time schedule preset, which help operators saving time;

* IP66 outdoor, 3000V thunder-proof, with all- weather protective cover;

* Working temperature:-30℃ ~ + 65℃

Parameter:

Digital Zoom	22X	23X		26X	30X	35X			36X
CCD	1/4″EX-VIEW HAD CCD
CCD scan	interlace	interlace		interlace	interlace	interlace	interlace		interlace
Resolution	480TVL	540TVL		540TVL	540TVL	540TVL	650TVL		540TVL
Min. Illumination	0.7Lux	0.01Lux		0.7Lux	0.01Lux	0.01Lux	0.27Lux		0.1Lux
Focal length (MM)	4-88mm	3.6-82.8mm		3.6-100.8mm	3.6-126mm	3.5-91mm	3.6-126mm		3.4-122.4
Optical zoom	12X	12X		12X	12X	12X	16X		12X
IR-CUT	Auto/ON/OFF
Focus	Manual/Auto
BLC	ON/OFF
WDR	-		ON/OFF
White balance	Auto/Manual
AGC	Auto
Signal system	NTSC/PAL
S/N Ratio	≥50db				≥52db
Face recognition	—	—		—	—	—		Support	—
Motion Detection	—	—		—	Support	Support		Support	Support
Privacy Mask	—	8		24	8	8		4	24
Language 8	Chinese, English, French, German, Italian, Russian, Spanish, Portuguese
Character	40 English alphabets each line
Max. Horizontal Speed	0.1-320°/s
Max.Verticality Speed	0.1-280°/s
Preset	256
Pattern	8(each more than 180s recording)
Auto Scan	8
Tour	8(32 presets/tour)
Compass Function	Support
Zone	8,with the title
Match Scale	Support
Outrage Memory	Support
Alarm	4in/2out
Timing	Support
Operate Temperature	0°~+50°(indoor) -30°~+60°(outdoor)
Environment Temperature	0~90% (no condensation)
Protection Grade	IP66, 3000V thunder-proof
Power Supply	DC24V±20%
Power	10W(indoor),50W(outdoor)
N.W.	4.5KG
Measurement	455mm415mm270mm
