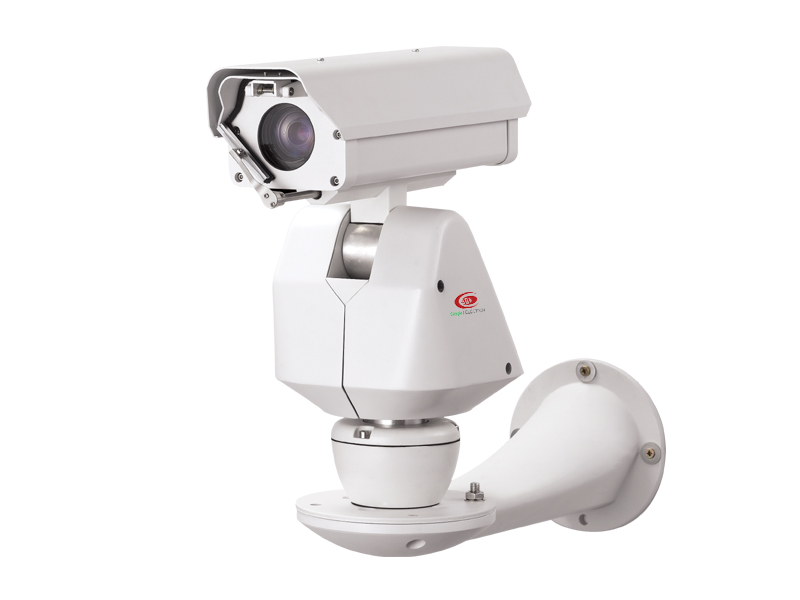

Name: M66 Mini Pan/Tilt Camera Unit Item No.: SGE-M66P

Main Features：

* Built-in 8 multi languages OSD menu
* Manual Pan speed: 0.1~120°/S ,manual tilt speed:0.1~90°/S
* Continuous Pan: 360°, Tilt: 125° (-45°~+80°)
* Withstand wind speed Max 130Km/H; Working speed: 90KM/H

Introduction:

* Auto call infrared and Start threshold can be set up;

* Motion detection;

* High pressurized aluminum alloy structure designs, w/windshield wiper, excellent capacity of water-proof, acid rain-proof, Anti Corruption, High temperatures;

* Built-in 8 multi languages OSD menu with password operation;

* In embedded operation system, support online editing relative titles via PC or other terminal;

* Memory storage after outage, the dome can resume the detection or state after turn on the power;

* Time task: can call the timing of color and B/W conversion and timing call the preset auto cruise function;

* Idle task function supported: call preset/tour and etc operations after idle for the specified time (including the idle status after the system boots up);

* Title can be displayed in 40 English alphabets each line;

* Compass function, one direction can be set as reference direction like north, then each direction will show on screen when running;

* 256 presets (accuracy0.1degree), 8 patterns, 8 tour, 8 auto scan;

* Built-in alarm: 1Input/1Output;

* Outdoor IP66, Built-in 3000V thunder-proof, with all- weather protective cover;

* Communication interface: R485, support general protocols such as: SAE, PELCOD/P, VCL, DIAMOND, KALATEL, PANASONIC etc.

* Optional zooms: Sony, Hitachi, Sanyo, Samsung, CNB, LG, etc.

Parameter:

Digital Zoom

18X

22X

23X

26X

30X

35X

36X

CCD

1/3″CCD

1/4″EX-VIEW HAD CCD

CCD scan

interlace

Resolution

540TVL

480TVL

540TVL

650TVL

540TVL

Min. Illumination

0LUX IR LIGHT ON

Focal length

(MM)

4.7-84.6

4.1-73.8

4-88

3.6-82.8

3.6-100.8

3.6-126

3.5-91

3.6-126

3.4-122.4

Optical zoom

12X

16X

12X

IR-CUT

Auto/ON/OFF

Focus

Manual/Auto

BLC

ON/OFF

WDR

ON/OFF

White balance

Auto/Manual

AGC

Auto

Signal system

NTSC/PAL

S/N Ratio

≧50dB

≧52dB

Face recognition

—

Support

—

Motion Detection

—

Support

Privacy Mask

—

IR Night View Distance

80~120M

8 Language

Chinese, English, French, German, Italian, Russian, Spanish, Portuguese

Character

40 English alphabets each line

Max. Horizontal
Speed

120°/s

Max. Verticality
Speed

90°/s

Preset

256

Pattern

8 (each more than 180s recording/Line)

Auto Scan

Tour

8(32 presets/tour)

Compass Function

Support

Zone

8 with the title

Match Scale

Support

Communication

RS485/RS422/Manchester/Biphase/Coaxiel

Bond RateRS485

2400/4800/9600/19200bps

Address Range

0~255

Outrage Memory

Support

Timing

Support

Video output
Range

1.0±0.2Vp-p

video input
interface

Female BNC

Operating
Temperature

0℃~+50℃(indoor) -30℃~+60℃(outdoor)

Operating Humidity

0~90%RH(no condensation)

Protection Grade

IP66, Built-in 3000V lighting and surge proof, with all- weather protective cover;

Power Supply

DC12V±10%

Power

AC24/3A

G.W.

15.4KG

Packing Mea.

349X401X452CM

Instruction:
