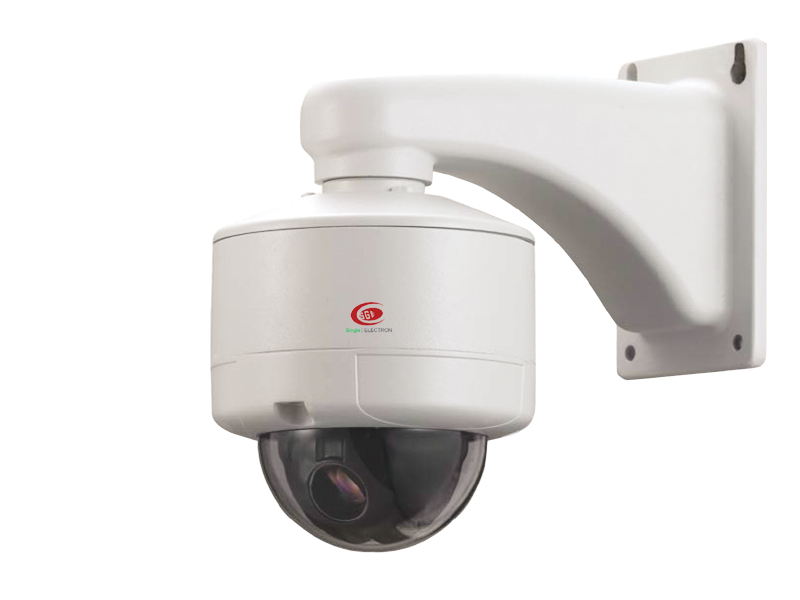

Name: M45 4 Inch Vandal-proof Mini High Speed Dome Camera            Item No.: SGE-M45P

Main Features：

* 256 presets, 8 patterns, 8 tours, 8 auto scan
* Max. pan speed: 320°/S, tilt speed:280°/S
* Baud Rate (RS485): 2400/4800/9600/19200bps
M45 4 Inch Vandal-proof Mini High Speed Dome Camera

 Introduction:

* Switch power, wide voltage: AC18-24V, DC12-24V( standard configuration: DC12V)

* Built-in 8 multi languages OSD menu with password operation;

* In embedded operation system, support online editing relative titles via PC or other terminal;

* Title can be displayed in 40 English alphabets each line;

* Compass function, set north as direction, showing each direction in screen when running;

* Idle task function supported: Call preset/tour and etc operations after idle for the specified time (including the idle status after the system boots up);

* Memory storage after outage, the dome can resume the detection or state after turn on the power;

* Build-in video 4input/1output; support build-in alarm and alarm linkage recording, linkage capture;

* Time task: can start different function according time schedule preset, which help operators saving time;

* IP66 outdoor Built-in 3000V, vandal-proof, with all- weather protective cover;

* Support general protocols such as: Pelco-C, PELCO-D PELCO-P, SAE, AD, Vicon, VCL, Molynx, Diamond, Kalatel, Philips, Bi-phase and EAE etc.);

* Support RS485: Manchester code, BI-PHASE code, PELCO-C;

* Working humidity: -30℃ ~ + 65℃;

* Optional zoom: Sony10X CCD, Samsung: 10X, 12X CCD.



Introduction:

* Switch power, wide voltage: AC18-24V, DC12-24V( standard configuration: DC12V)

* Built-in 8 multi languages OSD menu with password operation;

* In embedded operation system, support online editing relative titles via PC or other terminal;

* Title can be displayed in 40 English alphabets each line;

* Compass function, set north as direction, showing each direction in screen when running;

* Idle task function supported: Call preset/tour and etc operations after idle for the specified time (including the idle status after the system boots up);

* Memory storage after outage, the dome can resume the detection or state after turn on the power;

* Time task: can start different function according time schedule preset, which help operators saving time;

* IP66 outdoor Built-in 3000V, vandal-proof, with all- weather protective cover;

* Support general protocols such as: Pelco-C, PELCO-D PELCO-P, SAE, AD, Vicon, VCL, Molynx, Diamond, Kalatel, Philips, Bi-phase and EAE etc.);

* Support RS485: Manchester code, BI-PHASE code, PELCO-C;

* Working temperature: -30℃ ~ + 65℃;

* Optional zoom: Sony10X CCD, Samsung: 10X, 12X CCD.



Parameter:

Language

Chinese, English, French, German, Italian, Russian, Spanish, Portuguese

Character

40 English alphabets each line

Max. Horizontal
Speed

320°/s

Max. Verticality
 Speed

280°/s

Preset

256

Pattern

8(each more than 180s recording)

Auto Scan

8

Tour

8(32 presets/tour)

Compass Function

Support

Zone

8 with the title

Match Scale

Support

Communication

RS485/RS422/Manchester/Biphase/Coaxiel

Baud Rate (RS485)

2400/4800/9600/19200bps

Address Range

1-254

Operate
Temperature

-30℃~60°C

Operating Humidity

0-95%RH(no condensation)

Protection Grade

IP66、TV1500W, light & surge proof

Output Video Interface

Female BNC

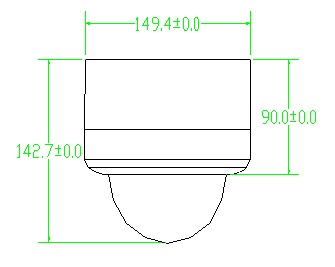

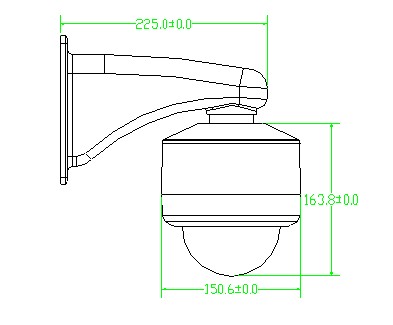

Measurement(mm)

190*190*213mm

Weight(KG.)

2.6Kg

Installation

Wall Mount Pendent Mount, Corner Mount, Pole Mount





SCM-2121P

(SAMSUNG)

SDM-100N/P

(SAMSUNG)

FCB-EX11D/11DP

(SONY)

VKU114R/ER

(HITACHI)

CCD

1/4″interline transfer CCD

1/4″interline transfer CCD

1/4″exview HAD CCD

1/4” solid state

 interline CCD

Signal system

PAL/NTSC

PAL/NTSC

PAL/NTSC

PAL/NTSC

Sync system

Internal/External

Internal/VD-lock

Internal/external

Internal/external

CCD scan

2:1interlace

2:1interlace

2:1interlace

2:1interlace

Resolution

560/680TVL

500/700TVL

530TVL

460TVL

Min. Illumination

Color:0.2LUX/F1.6(50IRE)

Mono:0.04LUX/F1.6(50IRE)

Color:0.7LUX/F1.8(50IRE)

mono:0.02LUX/F1.8(50IRE)

1.0LUX  F1.8

3.0LUX  F1.8

Iris

auto/manual

auto/manual

auto/manual

auto/manual

Focus

auto/manual

auto/manual

auto/manual

auto/manual

Zoom

optical12X,digital10X

optical10X,digital10X

optical10X,digital12X

optical10X,digital12X

Lens

F=3.8~46mm

F=3.8~38mm

F=4.2~42mm

F=4.2~42mm

View Angle

W:51.5°-F:4.4°

W:51.2°-F:5.58°

W:46°-F:4.6°

W:46.4°-F:5.0°

BLC

off/low/middle/high

off/low/middle/high

off/on

off/low/middle/high

AGC

common/high/off

common/high/off

auto/manual

auto/manual

White balance

ATW/AWC/manual

ATW/AWC/manual

auto/manual

auto/manual

S/N Ratio

≧52dB

≧50dB

≧50dB

≧50dB

Motion Detection

support

support

support

support

Privacy Mask

8

8

8

8

Video output range

1.0Vp-p

1.0Vp-p/75ohm

1.0Vp-p

0.7±0.7Vp-p
