Name: M56 D1 Intelligent High Speed Dome Camera Item No.: M56/D1

Main Features：

* Built-in Chinese and English OSD menu;
* Baud Rate (RS485):2400/4800/9600/19200bps;
* In embedded operation system.

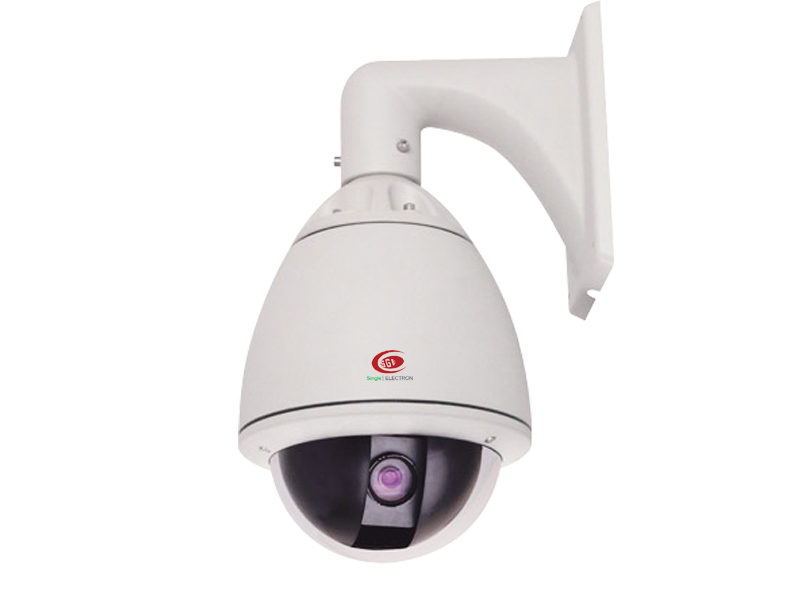

M56 D1 Intelligent High Speed Dome Camera

Introduction:

support online editing relative titles via PC or other terminal;

* Memory storage after outage, the dome can resume the detection or state after turn on the power;

* Time task: can start different function according time schedule preset, which help operators saving time;

* Broadcast address, can set any address as broadcast address. It can control the all dome in the same time or by grouping;

* Title can be displayed in 16 English alphabets each line;

* Compass function, can be set one direction as reference direction like north, then each direction in screen when running;

* Low temperature protection when begin running; Switch power and wide voltage input: AC16-30V

* 256 presets, 6 patterns (Each line Min. 180S), 1 tours (32 presets point each line);

* 8 defined areas title (can be set 8 areas in pan 360 degree, title will be shown when camera running in this defined area)

* Idle task function supported: Call preset/tour and etc operations after idle for the specified time (including the idle status after the system boots up);

* Optional function Alarm: 4Input / 1Output ( Be custom-order), and alarm linkage recording, linkage capture;

* IP66 outdoor, Built-in 3000V lighting-proof, vandal-proof, with all- weather protective cover;

* Working temperature:-20℃ to + 65℃

Optional zoom: Sony: 18X, 36X; Hitachi: 18X, 22X, 23X, 26X, 30X; Chinese Zoom: 18X, Japanese zoom: Koeisha.

Parameter:

Camera Specification
Item No.	M56D1H18X	M56D1S18X	M56D1H22X	M56D1H23X	M56D1S26X	M56D1H30X	M56D1BDM22X1	M56D1BDM22X2
Zoom	18X (Hitachi)	18X (Sony)	22X (Hitachi)	23X (Hitachi)	26X (Sony)	30X (Hitachi)	22X (BDM-S351)	22X (BDM-S452)
CCD	1/3〞CCD	1/4”EX-VUEW HAD CCD					1/4" SONY Interline Transfer Super HAD-II CCD	1/3" SONY Interline Transfer Super HAD-II CCD
CCD Scan	Interlace	Interlace	Interlace	Interlace	Interlace	Interlace	Interline	Interline
Pan Resolution	540TVL	480TVL	480TVL	540TVL	540TVL	540TVL	540TVL	650TVL
Min. Lux	0.7LUX	0.7LUX	0.7LUX	0.1LUX	0.71LUX	0.1LUX	0.02LuX	0.001Lux
Focus Length	4.7-84.6mm	4.1-73.8mm	4-88mm	3.6-82.8mm	3.6-100.8mm	3.6-126mm	3.9~85.8mm	4.7~103.4mm
Digital Zoom	12X	12X	12X	12X	12X	12X	12X	12X
IR-CUT	Auto/ON/OFF
Focus	Auto
BLC	ON/OFF
WDR	ON/OFF
White Balance	Auto/Manual
AGC	Auto
Signal System	NTXC/PAL
S/N Ratio	≧50dB		≧52dB				>50dB	>50dB
Privacy Mask							8	8
Face Recognition	—	—	—	—	—	—	—	—
Motion Detect	—	—		—	—	—	—	—
PTZ Function
Language	Chinese and English
Showing Word	16 Chinese words/ English alphabets each line
Pan Max. Speed	0.05°-200°/S
Tilt Max. Speed	0.05°-120°/S
Presets	256
Pattern	±0.1
Auto Scan	6( More than 180s recording/ Line)
Tour	1
Pan Max. Speed	6 (support auto scanning in area)
Compass	No
Area Shown	8( With titles and support auto scanning in area)
Proportion Match	Support
Communication	RS485
RS485 Baud Rate	2400/4800/9600/19200bps
Address Range	1~254
Memory storage	Support
Optional Alarm	4 Inputs/1 Output ( Customized)
Time Desk	No
Video Output Range	1.0±0.2Vp-p
Video Input Interface	Female BNC
Other Parameter
Operating Temperature	0℃~+50℃(indoor) -30℃~+60℃(outdoor)
Operating Humidity	0~90%RH(no condensation)
Protection Grade	IP66, 3000v lighting-proof, vandal proof, surge proof
Supply Power	AC 24V±20%
Power	10W(Indoor) 40W( Outdoor)
G.W.	6.5KG(Outdoor)
Package Mea.	45X28X33cm

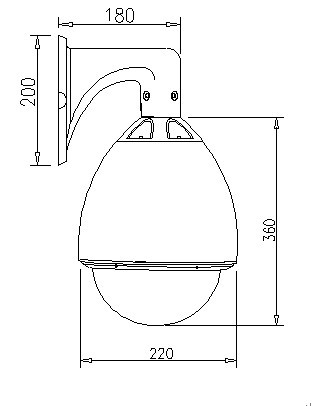

Installation: Outside wall, Indoor Pendant/Ceiling

Instruction:

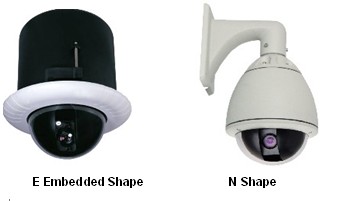

Optional Shape:
