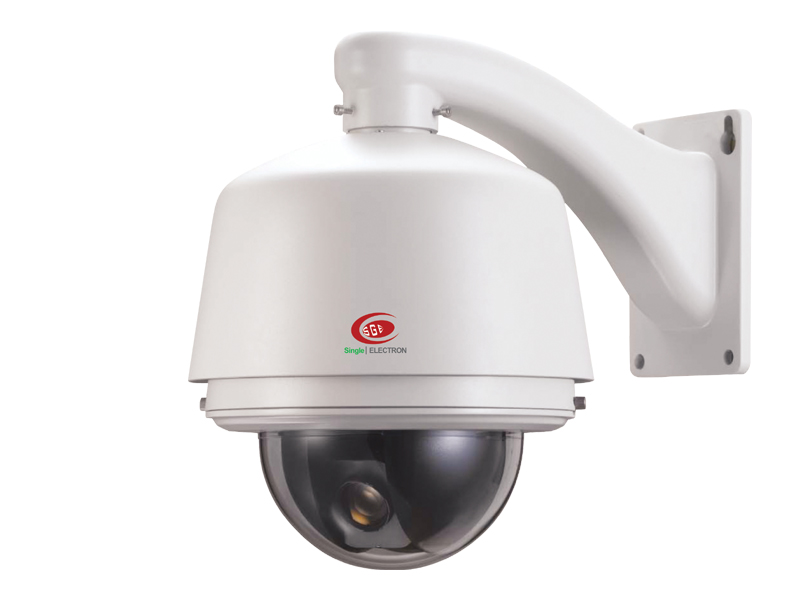

Name: M56 D2 Intelligent High Speed Dome Camera Item No.: SGE/D2

Main Features：

* Sony 1/4” Ex-view HAD CCD;
* Easy Install design;
* AMP plug installation easily;
* Max. pan speed: 320°/S, tilt speed: 280°/S; ;
* Built-in 8 multi languages OSD menu;
* Baud Rate (RS485): 2400/4800/9600/19200bps;
* Motion detection;

M56 D2 Intelligent High Speed Dome Camera

Introduction:

* In embedded operation system, support online editing relative titles via PC or other terminal;

* Title can be displayed in 40 English alphabets each line;

* Memory storage after outage, M56 D2 can resume the detection or state after turn on the power;

* Time task: can start different function according time schedule preset;

* Compass function, set one of direction as the ref like north, then other direction can be shown in screen when running;

* 256 presets,8 patterns, 8 tour,8 auto scan;

* Built-in alarm: 7 inputs / 2outputs; Build-in video 1input/1output;

* Support RS485/422, Manchester code,BI-PHASE code, PELCO-C;

* Support general protocols such as: PELCO-D PELCO-P, SAE, AD, Vicon, VCL, Molynx, Diamond, Kalatel, Philips, Bi-phase and EAE etc.);

* Built-in 3000V lighting proof, vandal-proof.* Optional zoom: Sony: 18X, 26X, 36X; Chinese Zoom: 18X, 22X.

Parameter:

Digital Zoom

18X

22X

23X

26X

30X

35X

36X

CCD

1/3"CCD

1/4”EX-VIEW HAD CCD

CCD scan

interlace

Resolution

540TVL

480TVL

540TVL

650TVL

540TVL

Min. Illumination

0.7Lux

0.01Lux

0.7Lux

0.01Lux

0.27Lux

0.1Lux

Focal length(mm)

4.7-84.6

4.1-73.8

4.-88

3.6-82.8

3.6-100.8

3.6-126

3.5-91

3.6-126

3.4-122.4

Optical zoom

12X

16X

12X

16X

12X

16X

IR-CUT

Auto/ON/OFF

Focus

Auto/Manual

BLC

ON/OFF

WDR

—

ON/OFF

White balance

Auto/Manual

AGC

Auto

Signal system

NTSC/PAL

S/N Ratio

≥50dB

≥52dB

Face recognition

—

Support

—

Motion Detection

—

Support

Privacy Mask

—

Language

Chinese, English, French, German, Italian, Russian, Spanish, Portuguese

Character

40 English alphabets each line

Max. Horizontal
Speed

320°/s

Max. Verticality
Speed

280°/s

Preset

256 (accuracy: 0.1°)

Pattern

8(each line recording time more than 180S)

Auto Scan

Tour

8(32 presets/tour)

Compass Function

Support

Zone

8 line, with title (support auto scanning)

Match Scale

Support

Communication

RS485/RS422/Manchester/Biphase/Coaxiel

Baud Rate(RS485)

2400/4800/9600/19200bps

Address Range

0~255

Outrage Memory

Support

Alarm

4Input/2Output

Timing

Support

Video output
Range

1.0±0.2Vp-p

Video input
interface

Female BNC

Operating
Temperature

0℃~+50℃(indoor) -30℃~+60℃(outdoor)

Operating Humidity

0~95%RH(no condensation)

Protection
Grade

Outdoor protection ratio: IP66, Built-in 3000V lighting-proof, vandal-proof,

Output Video
Interface

Female BNC

Power Supply

AC 24V±20%

Power

10W( indoor) 40W (outdoor)

G.W.

6.5KG

Measurement

45*28*33cm

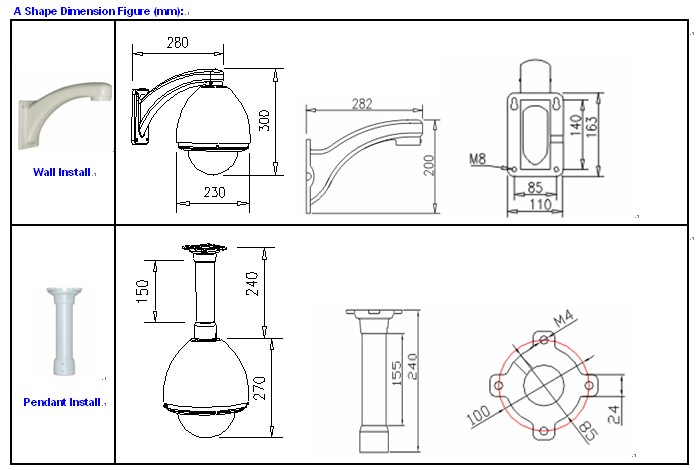

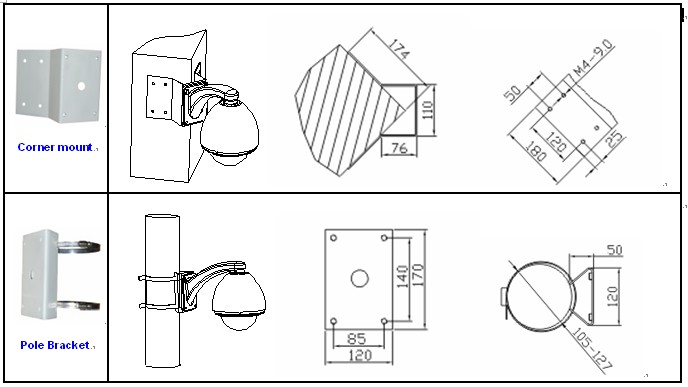

Instruction:

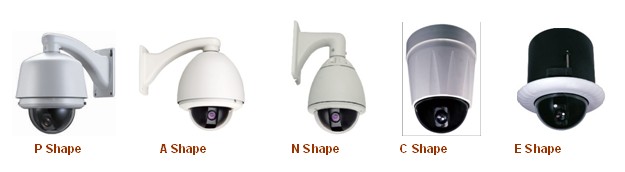

Optional Shape:
