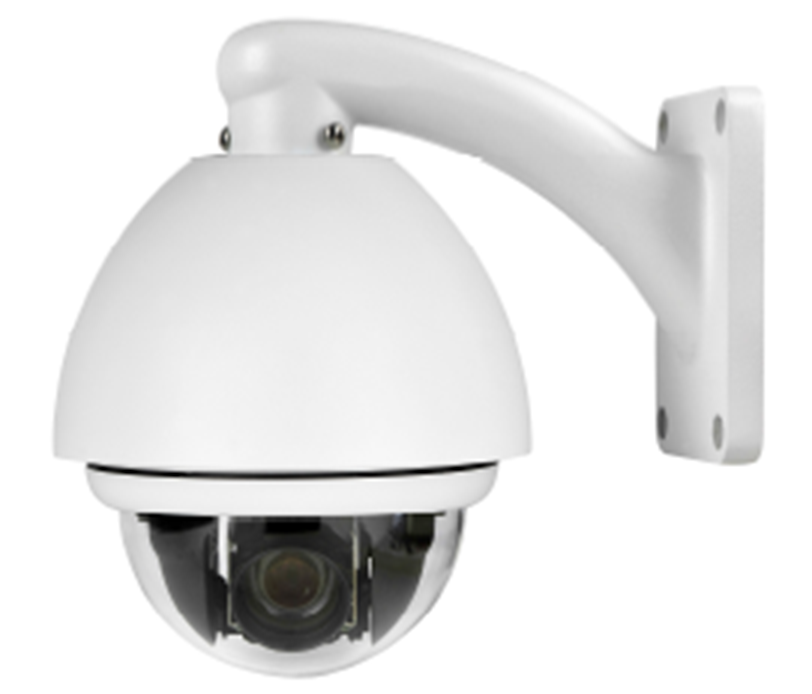

Name: 4.5MINI SPEED DOME Item No.: SGE-H45-AHD

Main Features：

4.5"MINI SPEED DOME Outdoor MINI Speed dome,AHD Lossless video output 2.3 Megapixel 10x optical zoom Max 300°/s pan speed, 360° endless rotation DC12V, IP66

Features

> Powerful 10x optical zoom

> AHD Lossless video output

> Max.25/30fps@1080p resolution

> DWDR, Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC

> OSD menu with humanized design, easy for operation

> Max 300°/s pan speed, 360° endless rotation

> Up to 128 presets, 4 auto scan, 4 tour, 4 pattern, clock functions

> DC12V, IP66

Specification
Optical zoom	1/3 inch 2.3 Megapixel progressive scan Sony 322 CMOS 10X,f=5-50mm, 1920x1080p,DWDR, Color:0.1 Lux; W/B:0.01Lux
Interface	AHD Lossless video output(BNC)
Max Imagine Resolution Specification	1920*1080p
Frame	25/30 fps
OSD	Support
Communication	Coaxial & RS485
Protocols	Pelco D/P self adaptor
Manual speed	Pan（0.2°～300°/s）Tilt（0.2°～ 200°/s）
Preset speed	300°/S
Rotation	Continuously 360°；tilt 0～90° with auto-flip
Speed Proportion	Human-oriented focal length/speed adaptation
Preset	128 preset, title can be edited
Auto-flip	Tilt down 90°, with auto-flip 180°
Scan	355° programmable ，4 scan
Pattern	4 patterns, time and speed can be set
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified
Time task	Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
OSD Menu	Support
Decoder	Built-in
Video output	Female BNC
Baud rate (RS485)	2400／4800／9600/19200 bps
Temperature	-40℃～+60℃
Humidity	0～95%（Non-condensation）
Protection grade	IP66, 1500v lightning-proof, surge-proof
Power Supply	DC12V/ AC24V (optional)
Net weight	2kg
